轻便折叠可躺款电动轮椅

YE245CR

Category: 电动轮椅

本款产品在原车型的基础上升级车架为可躺靠托，伸缩脚托，使车身更结实、美观，做工更精细，提升了车架的稳定性和承载能力，搭配全新设计的人体工程学座背垫，乘坐更加舒适，外观更时尚。

PARAMETERS

Item No.	CAMEL YE245CR

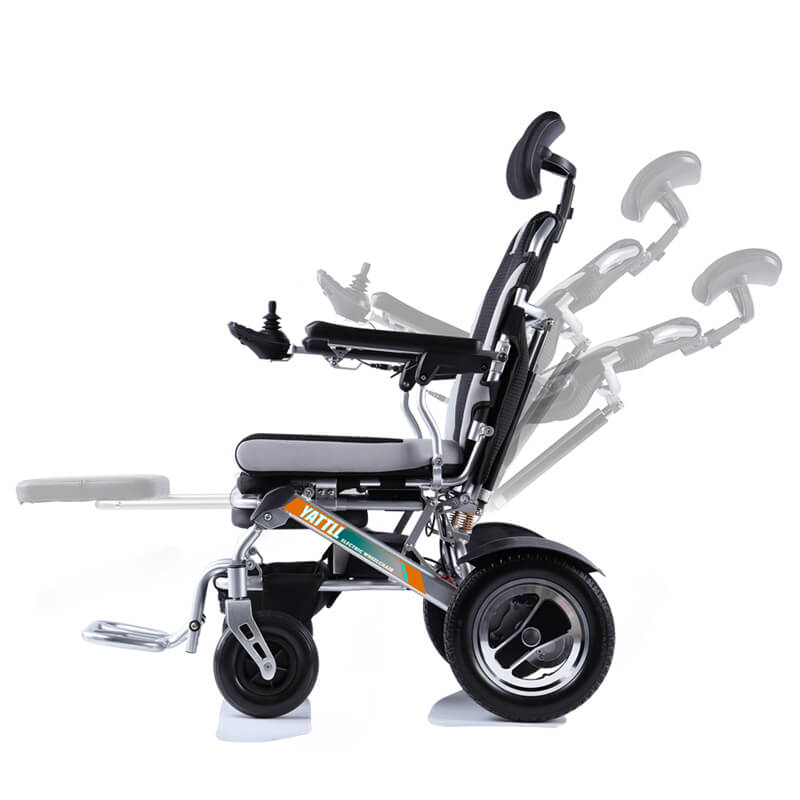

Reclining	Yes ( reclining and lifting adjustable by controller)
Dimension(Unfolded)	1046298 cm / 4124.438.6 in

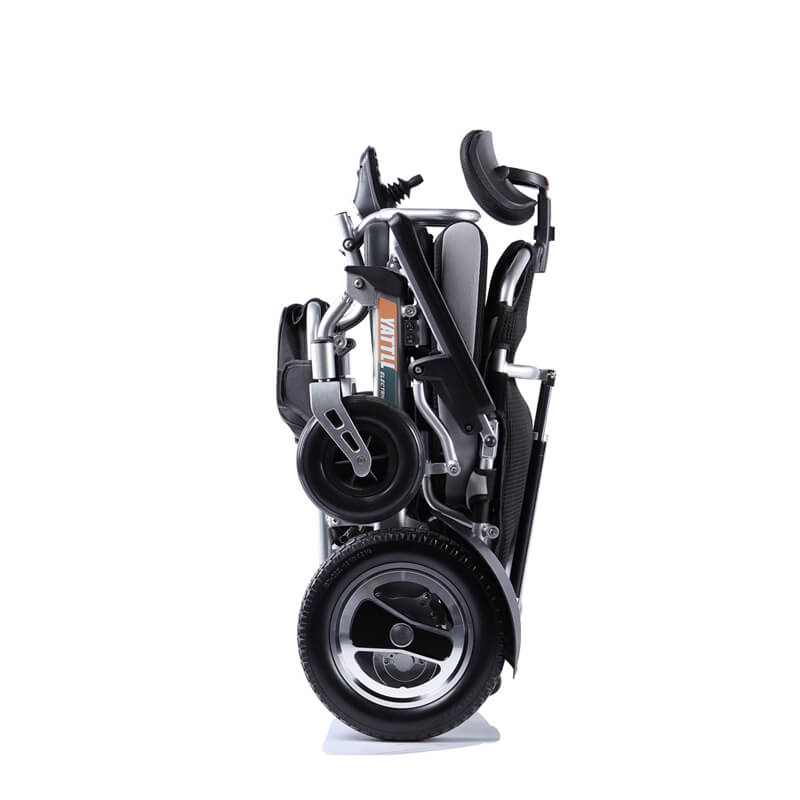

Dimension(Folded)	806234 cm / 31.424.413.3 in
Seat Width	45 cm / 17.7 inches
Seat Depth	45 cm / 17 inches
Backrest Height	53 cm / 20.8 inches
Floor-to-Seat Height	50 cm / 19.6 inches
Frame	Lightweight Aircraft Quality Aluminum
Seat & Backrest	Breathable durable seat cushion & pocket removable for easy clean
Controller	Reliable Brushless Controller
Motors (pair)	Brushless motor 180W *2 pcs
Batteries	Lithium Battery 24V 11AH
Max Speed	6 km/h
Charger	High Power 2A/3A
Charging Hour	6 Hours
Brake	Electromagnetic Braking system Change Power mode to manual model freely
Armrest	Simple designed Flip up armrest to excess in and out freely
Legrest	Foldable legrest to let passengers be closer & safer to sit on the chair
Rear Wheel	12.5″ rear wheel, new designed with self absorb ability
Caster	8″ wheel, new designed with self absorb ability
Maximum Range	15-18 km / 9.3-11 miles
Weight Capacity	135KG / 300 lbs
Ground Clearance	4 cm / 1.6 inches
Max Slope	12 degrees
Net Weight	Without Battery 25.5 kg / 56.2 lbs
Net Weight	Including Battery 27.3 kg / 60.2 lbs


WARRANTY

frame	3 Years
Controller	12 Months
Motor	12 Months
Batteries	12 Months
